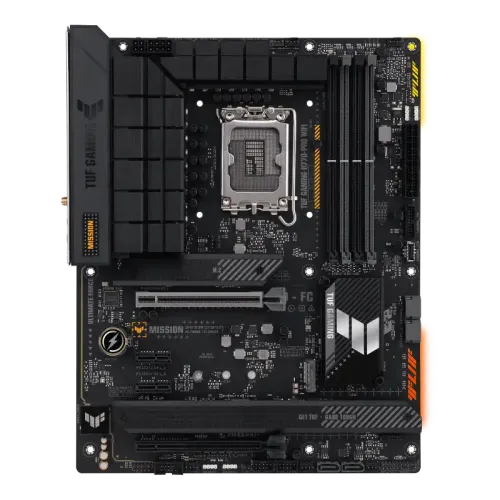

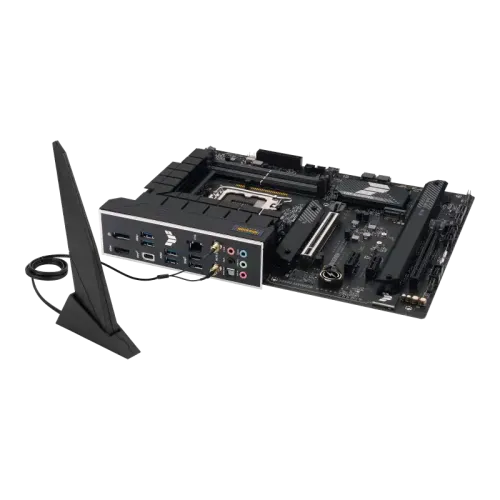

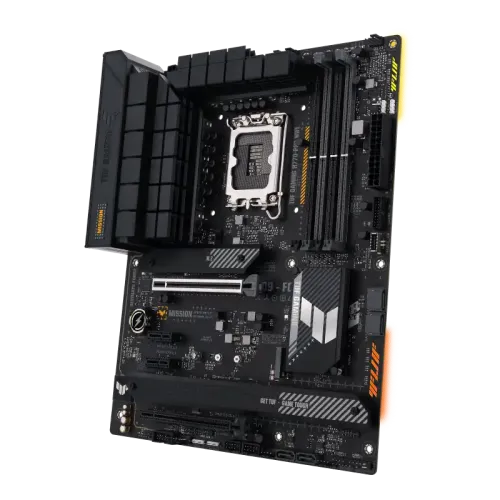

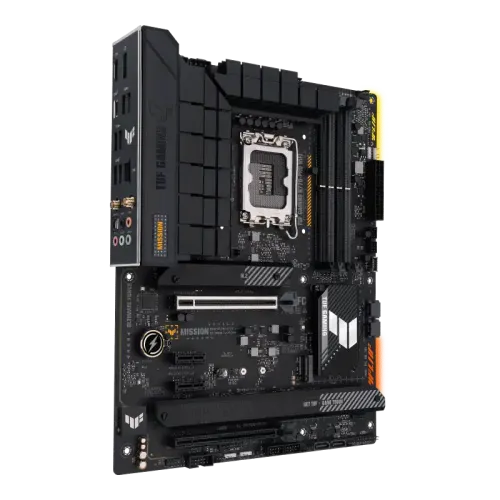

ASUS TUF GAMING H770-PRO WIFI ATX Motherboard

৳ 37,500 ৳ 34,800

Key Features

  • Model: TUF GAMING H770-PRO WIFI
  • Supported CPU: 13th Gen & 12th Gen Processors (LGA1700)
  • Supported Memory: 4 x DIMM, Max. 192GB, DDR5 7200(OC)
  • Graphics Output: 1 x DisplayPort, 1 x HDMI
  • Features: Wi-Fi 6 and Intel 2.5Gb Ethernet
Basic Information
Supported CPU Intel Socket LGA1700 for 14th, 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors
Supports Intel Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Chipset Intel H770 Chipset
BIOS 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Form Factor ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback
Audio Features
– Audio Shielding
– Rear optical S/PDIF out port
– Premium audio capacitors
– Dedicated audio PCB layers
– Audio Cover
Expansion Slots
PCI Intel 13th & 12th Gen Processors
1 x PCIe 5.0 x16 slot
Intel H770 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
2 x PCIe 3.0 x1 slots
Memory
Type DDR5
Slots 4 x DIMM
Supported Memory DDR5 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
Maximum Memory 192GB
Graphics
Graphics 1 x DisplayPort
1 x HDMI port
Connector & Ports
HDMI 1 x HDMI
Display Port (s) 1 x DisplayPort
USB (s) Rear USB (Total 7 ports)
1 x USB 3.2 Gen 2×2 port (1 x USB Type-C)
2 x USB 3.2 Gen 2 ports (2 x Type-A)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 1 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
LAN Port (s) 1 x Intel 2.5Gb Ethernet
TUF LANGuard
Wireless Communication module Wi-Fi 6
2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth v5.2
Supported Storage Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4)
Intel® H770 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
RAID Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
Audio 5 x Audio jacks
Internal I/O Ports Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt (USB4) header
TPM (Trusted Platform Module ) 1 x SPI TPM header (14-1pin)
Others
Special Features ASUS TUF PROTECTION
– DIGI+ VRM (- Digital power design with DrMOS)
– ESD Guards
– TUF LANGuard
– Overvoltage Protection
– Safeslot Core+
– Stainless-Steel Back I/O
ASUS Q-Design
– M.2 Q-Latch
– Q-DIMM
– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
– Q-Slot
ASUS Thermal Solution
– M.2 heatsink
– VRM heatsink design
ASUS EZ DIY
– CPU Socket lever protector
– ProCool
– Pre-mounted I/O shield
– SafeSlot Core+
– SafeDIMM
AURA Sync
– Aura RGB header
– Addressable Gen 2 headers
Bundled Software ASUS Exclusive Software
Armoury Crate
– Aura Creator
– Aura Sync
– Fan Xpert 4
– Two-Way AI Noise Cancelation
– Power Saving
AI Suite 3
– DIGI+ VRM
– PC Cleaner
TUF GAMING CPU-Z
DTS Audio Processing
MyAsus
Norton 360 for Gamers
WinRAR
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
Warranty Information
Manufacturing Warranty 3 years

ASUS TUF GAMING H770-PRO WIFI ATX Motherboard

The ASUS TUF GAMING H770-PRO WIFI ATX Motherboard comes with Intel Socket LGA1700 for 14th, 13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron Processors. This motherboard has 14+1 DrMOS power stages with enlarged VRM heatsinks, PCIe 5.0 support for graphics cards, compatibility with DDR5 memory modules, and USB 3.2 Gen 2×2 Type-C at the rear I/O panel. It also includes Intel 2.5 Gb Ethernet, WiFi 6, and Two-Way AI Noise Cancelation for enhanced connectivity and audio quality. Its I/O panel features HDMI, DisplayPort, USB ports, Intel 2.5Gb Ethernet, Wi-Fi 6, and 7.1-ch Audio. The motherboard’s power design includes features like DrMOS power stages, a multi-layer PCB, ProCool Power Connectors, and Digi+ VRM for efficient and stable power delivery. It also supports PCIe 4.0 M.2 slots, allowing for high-speed data transfer. The motherboard offers comprehensive fan controls via Fan Xpert 4 utility and comes with enlarged VRM heatsinks to improve thermal performance. The motherboard features WiFi 6, Intel 2.5 Gb Ethernet, AI Noise Cancelation, and high-quality audio. The onboard RGB lighting can be synced with compatible gear to create a personalized gaming atmosphere.
